| Place of Origin: | Jiangsu,China |
| Brand Name: | Golden Boat |
| Certification: | CE |
| Model Number: | XXA-C-1000L/H |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD 2107/SET |
| Packaging Details: | wooden case |
| Delivery Time: | 10 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100sets per month |
| Application: | Water Purification | Warranty: | 1 Year |
|---|---|---|---|
| Power: | 1 Kw | Product Name: | Car Wash Water Reclaim System |
| Capacity: | 1000L Per Hour | Washing System: | High Pressure Washing |
| High Light: | Carbon Filter Car Wash Water Recycling System,ISO9001 Car Wash Water Recycling System |
||
Car wash waste water recycling system 1000L per hour
Car wash waste water recycling system Introduction:
The raw water flow through the multimedia filter which was filled with quartz sand filter material,which could remove the mud, sand, rust,and oil.the active carbon is used to absorb and remove all odor, color, detergent, and soap in the water.UF(ultrafilter)could filter out the residual mud, sand, rust,and oil to ensure the output water quality.The micro membrane could remove high molecular compound, clay, paint, minerals,the emulsion particles, microorganisms, grease, oil, detergent and water emulsion.Ultraviolet sterilizer is to kill bacteria in water.
Micro-filtration membrane separates the liquid in the material by physical aperture nanometer level,there will be no phase separation process,no change for the separating material,and will be no secondary residue problem.

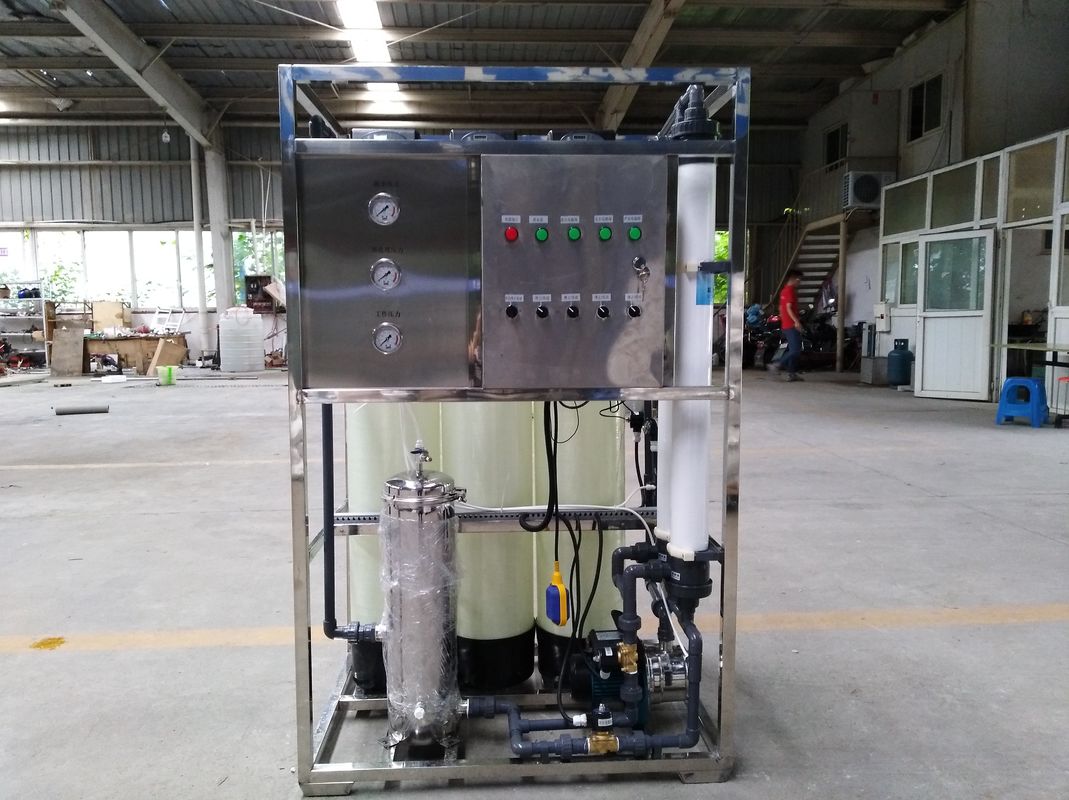

Micro-filtration is the core technology of this treatment,which mainly remove suspended matter, colloid, chroma, turbidity, organic matter, bacteria and Escherichia coli and other impurities.According to the characteristics of raw water ,the equipment sections installed here consists of pump for raw water,multimedia filter,active carbon filter,UF,micro-filtration membrane and ultraviolet sterilizer.
1.) Details Configuration:
| Main Part | Item | Model/Brand | QTY |
| Raw water part | Raw water Pump | CNP | 1pc |
| Bypass-valve | DN20 | 1pc | |
| Liquid level controller | MD-UK221 | 2pc | |
| pressure gage | 0.7MPa | 1pc | |
| Bag filter | Bag fliter | Cotton | 1pc |
| SS bag filter housing | SS304 | 1pc | |
| Multi Media filter | FRP filter tank | 1054 | 1pc |
| Up-down distributor | Adaptive | 1set | |
| Inlet gage | YUYAO | 1pc | |
| Automatic valve | F67P Runxin | 1pc | |
| Silica/Manganese sand 4-6mesh | 50KG | 1bag | |
| Activated carbon filter | FRP filter tank | 1054 | 1pc |
| Up-down distributor | Adaptive | 1set | |
| Inlet gage | YUYAO | 1pc | |
| Automatic valve | F67P Runxin | 1pc | |
| Shell Activated carbon | 25KG | 1bag | |
| Micron filter | SS304 micron filter housing | 20” | 1set |
| PP cartrige 5um | 20” | 3pcs | |
| Post treatment | Ozone generator | 3g | 1 set |

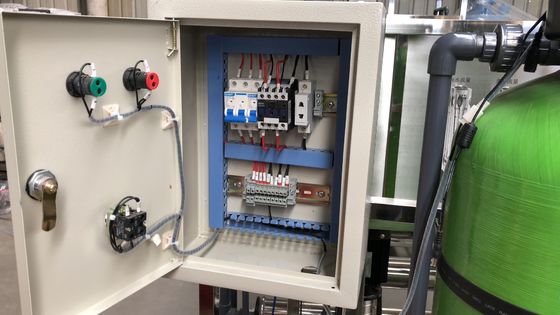

| PLC control systems | PLC control system | Adaptive | 1pc |
| PLC screen | Adaptive | 1pc |
Remark:
1.) Suggested build 3 grade sedimentation tank. Each of tank should be around 1CBM.
2.) 50Hz production time is 5-10 days. 60Hz production time is 30-40 days.
3.)
5.) Raw water tank → raw water pump → Bag filter → Silica sand filter → Activated carbon filter → Precision filter → Pure water tank
| Product name: | Water Recycling system | Warranty: | 1 year |
| Model: | XXA-C-1000L/H | Working temp: | ≤45° |
| Control method: | Automatic | Package: | Plywood case |
| Power: | 1KW | Certification: | ISO9001 & CE |
