| Place of Origin: | Jiangsu, China |
| Brand Name: | Golden Boat |
| Certification: | CE ISO |
| Minimum Order Quantity: | 1 Set/Sets |
|---|---|
| Price: | $398.70 - $502.00 / Set |
| Packaging Details: | Plywood box |
| Supply Ability: | 100 Unit/Units per Week |
| Use: | Car Jack | Type: | Air Jack |
|---|---|---|---|
| Warranty: | 1 Years | Min Height: | 210mm |
| Product Name: | 50T Air Hydraulic Jack | Color: | Blue |
| Material: | Metal | Packing: | Wooden Box |
| MOQ: | 1 Piece | Application: | Automotive Repair Tools |
| Highlight: | 210mm Height Air Hydraulic Jack,25 Ton Air Hydraulic Jack,531mm height Air Hydraulic Jack |
||

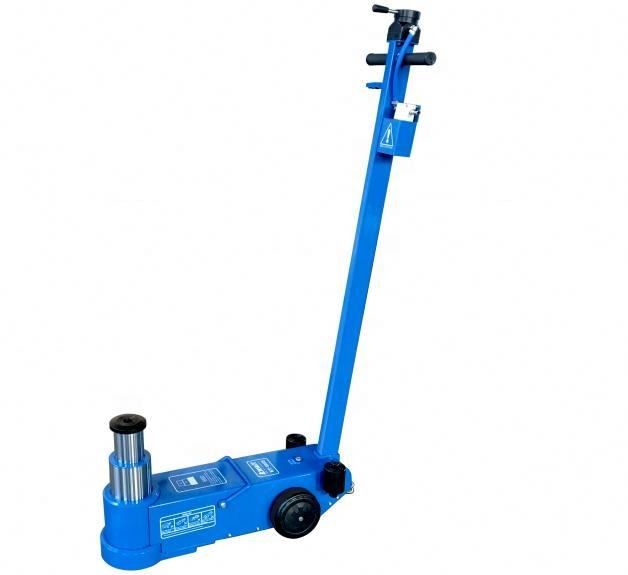

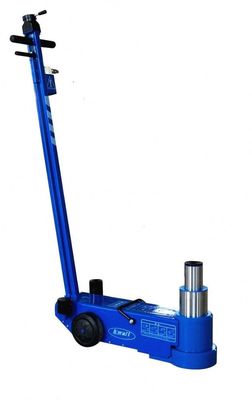

Exporting quality 50 ton air hydraulic bottle jack by ISO
|
Model type |
50-T2 |
|
Type |
AIR HYDRAULIC JACKS |
|
Lifting Capacity |
25/50T |
|
Min Height |
210mm |
|
Max Height |
531mm |
|
Lifting Height |
25T:94mm 50T:102mm |
|
Working air pressure |
0.8-1.2Mpa |
|
Net weight |
60kg |
|
Gross weight |
77kg |
|
Packing size: |
1450*350*350mm |
,
Lifting:
1. Connect adequate air source to the air supply inlet(Air pressure 0.9-1.2Mpa)
2. Turn the control valve clockwise until the pump starts.
3. Transfer the load immediately to appropriately rated jack stands.
Lowering:
1. Raise load high enough to clear the jack stands.
2. Remove jack stands carefully(always used in pairs).
3. Slowly turn handle knob counter-clockwise, if the load fails to lower:
(a). Use another jack to raise the vehicle high enough to reinstall jack stands.
(b). Remove the malfunction jack and then jack stands.
(c).Use the functioning jack to lower the vehicle.
4. After removing jack from under the vehicle, fully retract the jack to reduce ram exposure to rust and contamination.
The detailed compenent parts:
