| Place of Origin: | Jiangsu,China |
| Brand Name: | Golden Boat |
| Certification: | CE |
| Model Number: | PTC806 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD 400-600/SET |
| Packaging Details: | wooden case |
| Delivery Time: | 20 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100 sets per month |
| Max. Wheel Diameter: | 37"(940mm) | Max. Wheel Width: | 12"(304mm) |
|---|---|---|---|
| Motor Power: | 1.1kw/0.75kw/0.55kw, 1.1kw/0.75kw/0.55kw | Operating Pressure: | 8-10bar |
| Bead Breaker Force: | 2500kg | Product Name: | Tire Changing Machine |
| Rotation Speed: | 7rpm | Outside Clamping: | 10"-18" |
| High Light: | 37" Dia Tyre Changer Machine,Semi Automatic Tyre Changer Machine,37" Dia tire changing machine |
||

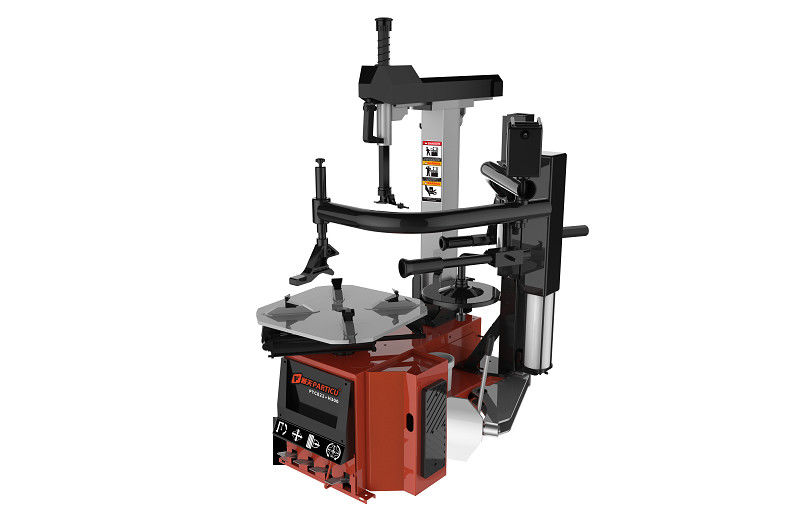

Semiautomatic Tyre Changer
tire changing machine Feature:
1. High performance tire changer with manual title tower design for large outside clamping capacity up to 18”
2. Non-opposing jaws with embossed dimension makes clamping faster more accurate.
3. Mounting helper assembly assists in mounting and demounting low-profile and run flat tires.
4. High performance mount/demount head with tire iron slot designed for low profile tires
5. The position bead-breaker with telescoping adjustments increase depth and width of bead-breaking capacity,inflation jets,built into clamps,ensure correct positioning for easy bead setting.
| Semiautomatic Tyre Changer | |
| Model | PTC806 |
| Motor Power | 1.1kw/0.75kw/0.55kw |
| Power Supply | 400V/3Ph, 230V/1Ph optional |
| Max. Wheel Diameter | 37"(940mm) |
| Max. Wheel Width | 12"(304mm) |
| Outside Clamping | 10"-18" |
| Air Requirement | 8-10bar |
| Rotation Speed | 7rpm |
| Bead breaker force | 2500kg |
| Noise level | <70dB |
| Weight | 206kg |
| Package size | 970*770*870mm |
| Features: | |
| 1. Use for small car, economy and stable. | |
| 2. Strengthen the base box to 2.75mm thickness, make the whole machine more stable. | |
| 3. Adopt the Electrostatic spraying outdoor paint, beautiful and non-fading. | |
| 4. The bead breaker design with double air cylinder, strogn and quick. | |
| 5. SMC Oil-water separator,make sure lubricate and safe for air pressure system. | |
| 6. Profession copper core aluminum shell motor,Low heat, to ensure that adapt to the high temperature environment. |
|
| 7. Based on the human body engineering design of the Pedal assembly, easy to operate, use for longer time. | |
| 8. Burst type clamping segment structure design, assembly and disassembly when the tire at any time suspended, convenient and safe. |
|
| 9. The operator is more safe, time saving and labor saving with the special pressing tire assistant tool. |
|
