Smart 360 Degree Rotate Arm 4.5 Minutes Wash Car Systems

Smart 360 Degree Rotate Arm 4.5 Minutes Wash Car Systems

  • Smart 360 Degree Rotate Arm 4.5 Minutes Wash Car Systems
  • Smart 360 Degree Rotate Arm 4.5 Minutes Wash Car Systems
Smart 360 Degree Rotate Arm 4.5 Minutes Wash Car Systems
Product Details:
Place of Origin: Jiangsu,China
Brand Name: Golden Boat
Certification: CE
Model Number: G8
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 23800-25800/SET
Packaging Details: wooden case, 5packages,2868KG,9.93CBM
Delivery Time: 10 work days
Payment Terms: T/T
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Power: 24.5kw Name: Car Cleaning System
Voltage: 380V,50HZ,3PHASE Cleaning Type: Pressure Water Cleaning
Washing Time: 4.5 Minutes Size: 8000*3686*3400mm
High Light:

4.5 Minutes Wash Car Systems

,

Rotate Arm Wash Car Systems

,

360 Degree Wash Car Systems

Stainless steel touchless car wash machine 8000*3686*3400mm 24.5kw with drying system



car cleaning system Functions:



1. High pressure pre-wash for under chassis and wheels.

Equipped with a unique chassis and fan hub flush function, 80bar high pressure water can effectively remove dirt on chassis, body sides and wheels.



2. Smart 360 rotate arm, spray various washing chemicals with high-precision proportioning technology.

100% accurate measurement with adjustable ratio. only 20~50ml pre-soak comsumption for washing one car through high precision chemical mixing system, save material and cost efficiently.



3. Smart 360 rotate arm, Flush car body 360° with high pressure water.

Complete 360° rotating within 28 seconds, water saving 50%, electricity saving 60%, automatic detect the length and width of the vehicle, up to 80bar high pressure water can easily remove the dirt.



4. Magic color polish shampoo

Thick foam makes cleaning maintenance component fuller contact with dirt, thereby improving the efficiency of decontamination, making the paint colors more moist, bright lights.

Unique soft-type broad-spectrum activity of ion cleansing agents, emulsifying effective daily cleaning dirt on the car body and non-corrosive for the car paint, wheels, tires, window glass.



5. Soft water with crystal wax coat

Soft water can make magic crystal coating color shampoo and wax completely adsorbed body surface, forming a multi-layered interaction strength protective film, car paint become more glorious and beautiful with durable paint protection.

Crystal coating of wax can be generated in the paint surface layer polymer, the water softener fused into a hard protective film, with superior protection of car paint, and features anti-acid rain, pollution, UV erosion.





car cleaning system Specifications:



Item Specification Configuration
Machine outside size 3670mm*1330mm*1300mm Self-service parking detection system
Pump station size 1280mm*740mm*600mm Digital security anti-collision system
Liquid machine size 1160mm*470mm*1350mm Rotary washing function
Washing maximum size 6000mm*2400*2000 Chassis washing function
Installation length 7500mm~8000mm Shampoo spray
Installation width 33500mm~3686mm Foam spray
Installation height 3300-3400mm Wax spray
Weight and volume ≥3300kg/≥8.5m³ Drying system
Power requirement 380V/25Kw LED guiding system
Air switch 100A air switch Operate limit function
Machine power 13Kw/24.5Kw Payment station
Pump motor power 16.5Kw/pressure60Kg——18.5Kw/pressure100Kg Prompt system
Dryer motor power 5.5kw/set*4set Counting function
Longitudinal motor power 0.55kw winterization system
Lateral motor power 0.75kw Oil free system
Rotary Motor 0.75kw All pressurized anti-blocking nozzles
Ratio of motor power 0.75kw security alarm system
PLC Industrial intelligent digital control system Auto Stand-by and Sleep Mode
Driving system Inverter frequency + digital servo driver
Detecting system Intelligent 2d + 3d stereo detection system
Sensing system Ultrasonic + absolute value digital encoder
Running speed 27 seconds
Foam (1-12L/H)
Shampoo (1-25L/H)
Wax (1-12L/H)
Water consumption 65-200L
Electric consumption 0.4-1kwh



car cleaning system Feature:

1. High pressure water spray, colorful shampoo and wax coating.
2. Bulilt-in Dryers equipped with four high efficiency motors and fans
3. Choose different washing modes on the touch screen operation panel.
4. CPU+PLC control system make the machine easy to operate and maintain.
5. The touchless automobile detergent from high pressure pumps wash the car ciean and bright.
6. On-site installation, testing and training available.



Pre-Sales Service


  Free product consultation

  Car wash machine customization

 Construction drawing design


After-Sales Service
  Engineer on-site installation support

  English manual and other document provided
  Lifelong technical support









Smart 360 Degree Rotate Arm 4.5 Minutes Wash Car Systems 0





Details



Smart 360 Degree Rotate Arm 4.5 Minutes Wash Car Systems 1

Smart 360 Degree Rotate Arm 4.5 Minutes Wash Car Systems 2



Smart 360 Degree Rotate Arm 4.5 Minutes Wash Car Systems 3











Spare parts

Smart 360 Degree Rotate Arm 4.5 Minutes Wash Car Systems 4



Smart 360 Degree Rotate Arm 4.5 Minutes Wash Car Systems 5



Smart 360 Degree Rotate Arm 4.5 Minutes Wash Car Systems 6



Smart 360 Degree Rotate Arm 4.5 Minutes Wash Car Systems 7







Packing and shipping

Smart 360 Degree Rotate Arm 4.5 Minutes Wash Car Systems 8

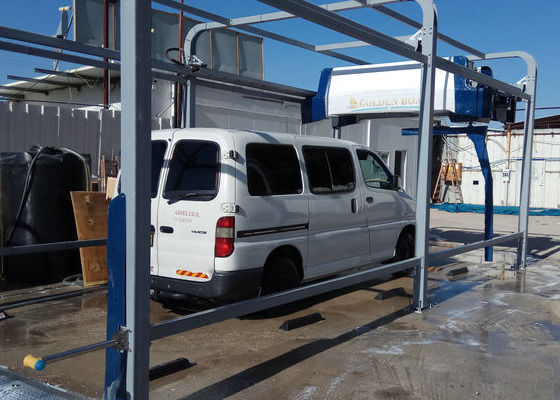

Client cases:







Smart 360 Degree Rotate Arm 4.5 Minutes Wash Car Systems 9



Smart 360 Degree Rotate Arm 4.5 Minutes Wash Car Systems 10







Smart 360 Degree Rotate Arm 4.5 Minutes Wash Car Systems 11





Company information:



Wuxi Golden Boat Car Washing Equipment Co.,Ltd has more than 10 years experience on car washing machine designing and production. We already export car washing machines to USA,UK,France,Germany,Turkey,Malaysia, Israel,Saudi Arabia, Iran,Pakistan,India,South Korean,Ecuador,Chile,Colombia,Peru,Brazil,Italy and many other countries.Now we already export machines more than 70 countries. We have 20 engineers and 100 workers. We have strong production capacity ,we can produce more than 100 car washing machines every month. We can provide the perfect after sales service. Our engineer can fly to your country to finish the installation in ten days. Many gas stations, car wash shops, car repair shops, car rent companies all over the world use our company golden boat car washing machines.



Welcome to visit our company at any time.







Smart 360 Degree Rotate Arm 4.5 Minutes Wash Car Systems 12

Smart 360 Degree Rotate Arm 4.5 Minutes Wash Car Systems 13



Smart 360 Degree Rotate Arm 4.5 Minutes Wash Car Systems 14
